Description

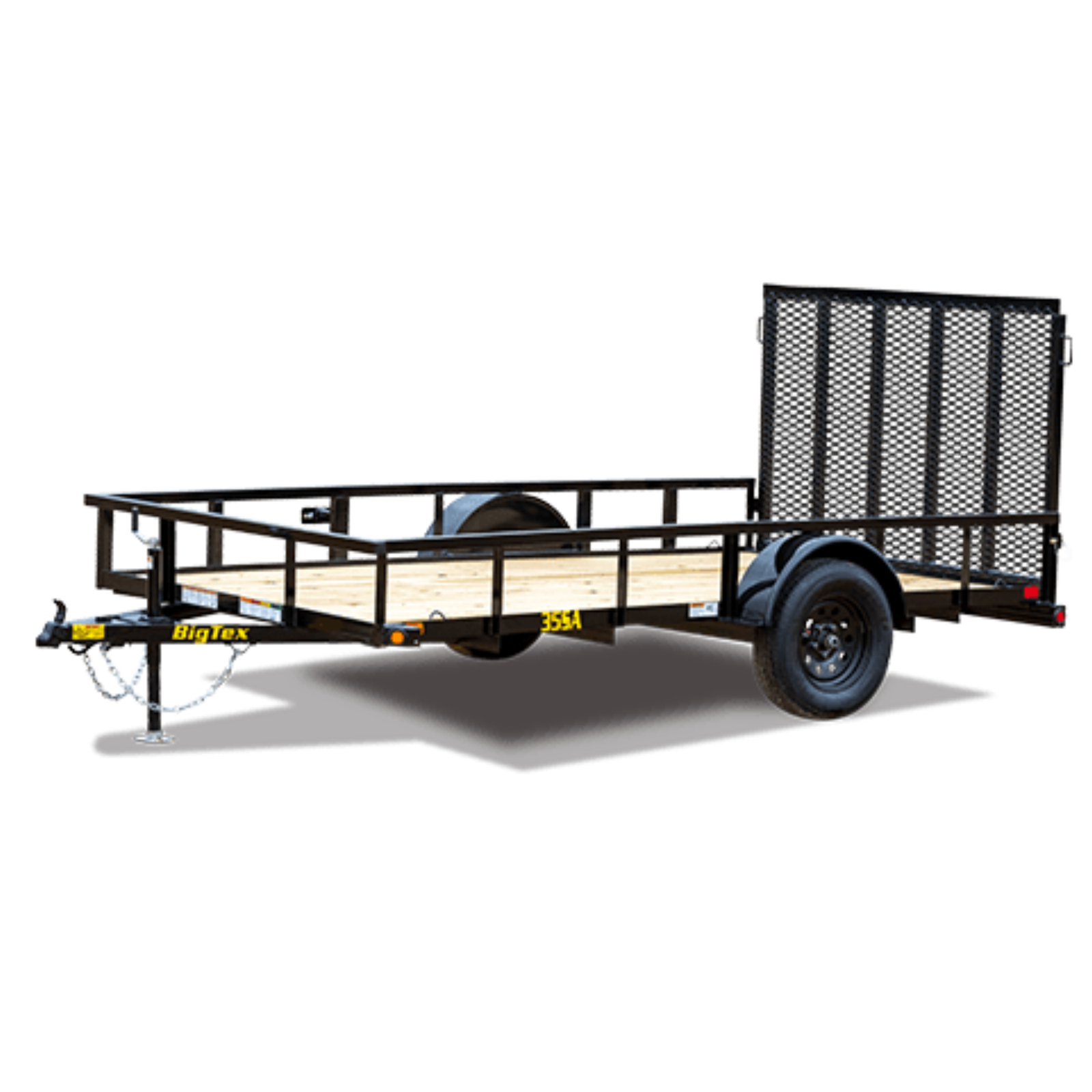

A trailer that works hard at home and on the job, the 35SA Single Axle Utility Trailer delivers versatility, reliability, and convenience—no matter the task at hand. Transporting equipment, landscaping supplies, or even some side-by-side vehicles, it’s a trailer that’s built for homeowners and outdoor enthusiasts seeking a rugged and dependable trailer for years to come. STANDARD FEATURE AVAILABLE OPTIONS Axles 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs Brakes Brake Flanges for Easy Brake Addition Electric Brakes w/ Complete Break-Away Kit Suspension Multi-Leaf Slipper Spring Coupler 2″ A-Frame 2″ Forged Coupler Safety Chains 1/4″ Grd. 30 w/ Safety Latch Hook (2 ea) Jack 2,000# Top Wind, Set-Back Jack with Removable Sand Foot 2,000# Fold-Up Jack Frame 3″ x 2″ x 3/16″ Angle Cross-Members 3” x 2” x 3/16” Angle Floor Treated Pine Floor Blackwood Pro Rubber Infused Lumber Floor (per linear foot) Fenders 9″ x 32″ Rolled Formed w/ Back Ramps 4′ Slide-In Angle Ramps 4′ Tall Bi-Fold Rear Ramp Gate w/ Coil Spring Assist 4′ Tall Rear Ramp Gate w/ Coil Spring Assist 5′ Tall Rear Ramp Gate w/ Coil Spring Assist Stake Pockets Additional Stake Pockets (Each) Trailer Plug 4-Way Flat w/ Loom Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance Wiring Grommet-Mounted Lifetime L.E.D. Lighting Tires ST205/75 R-15 Load Range C Bolt Pattern 5 Bolt Spare Mount Side Spare Tire Mount Spare Tire Spare Tire (ST205/75R-15 LR-C) Paint Type Professional Finish w/ Primer Standard Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow Tie-Downs (4) Tie Down Loops Inside Bed Additional Tie Loops Sides 17″ Tall Open sides with 2” Angle uprights and 2″ x 2″ Square Tubing Top Rail 2′ High Sides (Open, Total Height with Top Rail) 3’ High Sides (Open, total height with Top Rail) 4’ High Sides (Open, total height with Top Rail) Car Hauler Style (No Side Rails) Enclose Sides w/ Expanded Metal (Per Square Foot) Enclose Sides w/ Sheet Metal (Per Square Foot) MODEL 35SA-10 PULL TYPE Bumperpull GVWR 2995 lbs GAWR (EA. AXLE) 3500 lbs EMPTY WEIGHT 893 lbs CARGO CAPACITY 2102 lbs BED LENGTH 10′ BED WIDTH 77″ A 121-1/2” B 73″ C 48-1/2” TONGUE LENGTH 36-1/8″ MODEL 35SA-12 PULL TYPE Bumperpull GVWR 2995 lbs GAWR (EA. AXLE) 3500 lbs EMPTY WEIGHT 983 lbs CARGO CAPACITY 2012 lbs BED LENGTH 12′ BED WIDTH 77″ A 145-1/2” B 85” C 60-1/2” TONGUE LENGTH 36-1/8″ MODEL 35SA-14 PULL TYPE Bumperpull GVWR 2995 lbs GAWR (EA. AXLE) 3500 lbs EMPTY WEIGHT 1073 lbs CARGO CAPACITY 1922 lbs BED LENGTH 14′ BED WIDTH 77″ A 169-1/2” B 97″ C 72-1/2” TONGUE LENGTH 36-1/8″
